Description

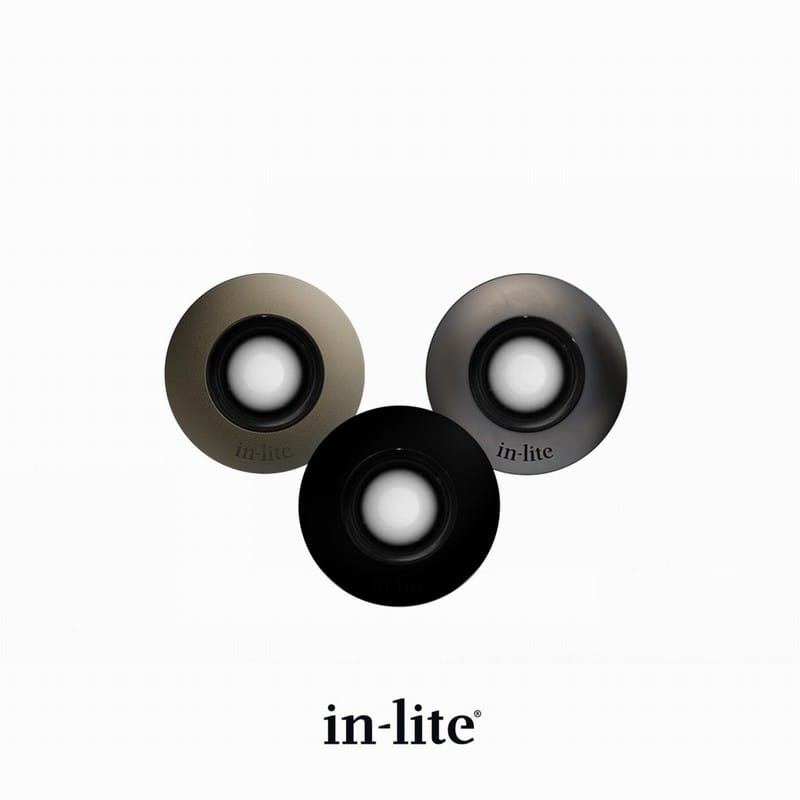

The DOT range is designed around a similar platform to the FUSION range, with a similar size, light output and frosted lens, but with one key difference. The DOT recessed lights are compatible with both the 12v in-lite® systems, and the new 21v SMART HUB-300. Add the Ring 28 (sold separately) bexel, available in a choice of three colours. NOTE: image shows DOT with bezel.

Although the bezel is visible during the day, these fixtures come alive at night and produce a lovely warm glow of light from their frosted lens, with absolutely zero glare. This makes them ideal for use as marker lights around areas with high traffic such as walkways, paths, decking, or even driveways. They are suitable for drive-over applications. in-lite® recommend spacing the DOT 22 fittings around every 1½ to 2m. For mounting in soft ground, the in-lite® SPIKE 22 accessory can be used.

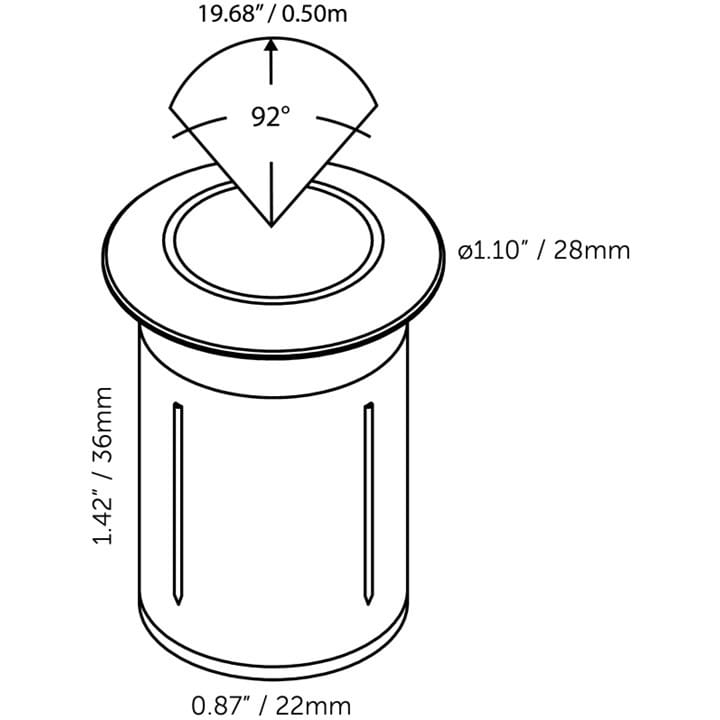

These fittings are also available without a bezel for a more seamless installation, the DOT 22 Trimless recessed lights. If slightly more light is desired, the larger DOT, with a Ø60mm cut-out and 68mm bezel, can be used instead.

Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting to anywhere on the chosen in-lite® CBL cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORD cable extensions.

Installation value: 0.50 VA

Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.

Installation Guide
