Description

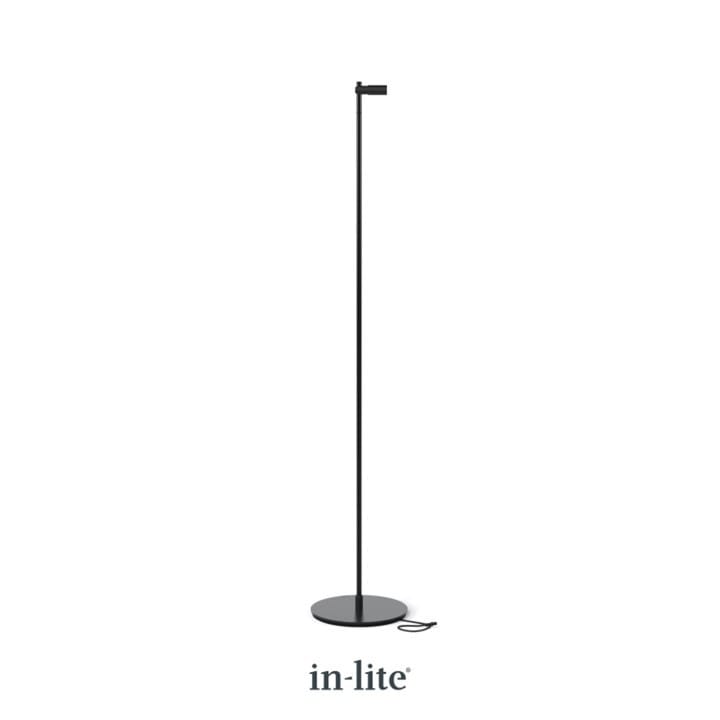

The AIM FLOOR is the newest addition to the popular AIM concept. Like the rest of the AIM concept, they feature excellent customisability to provide the perfect aesthetic for each project. The AIM FLOOR features a 1.5m tall riser (supplied in two pieces for assembly on site) with a single AIM LIGHTHEAD out of the box. The AIM Floor Base is sold separately. Up to two further AIM LIGHTHEADs can then be added, with each being independently adjusted to the perfect angle and direction.
The AIM FLOOR is perfect for outdoor lounging and seating areas, decking or paving.

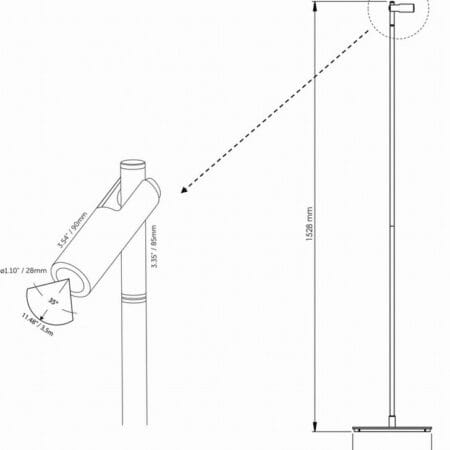

The AIM LIGHTHEADs themselves utilise a simple push-fit design with no need for additional cabling. Just remove the small cap from the AIM FLOOR riser, push the AIM LIGHTHEAD into place, then replace the cap. Each LIGHTHEAD emits a 35 degree beam of light that projects to a distance of around 3.5m, making them perfect for lighting shrubs and small trees amongst other applications. The LIGHTHEADs also feature a built-in KILLFLASH honeycomb lens that aids in the prevention of glare.
Each in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting to anywhere on the chosen in-lite® CBL cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT CORDs cable extensions.
The in-lite® AIM range are compatible with the standard 12v in-lite® system, as well as the 21v SMART HUB-300 system.
Installation value: 2.10 VA
Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.
Specifications
| Type | Spotlights |
|---|---|
| Item | |
| Brand |
