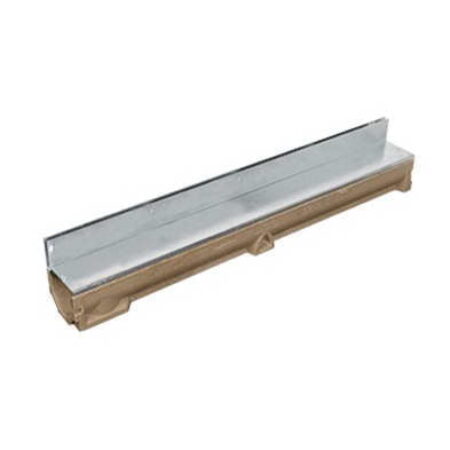

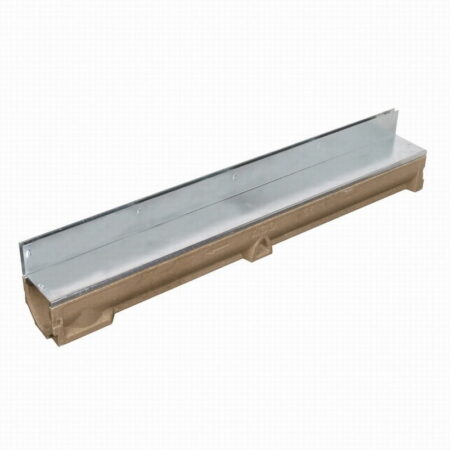

ACO Raindrain Brickslot are manufactured from recycled polymer concrete material with a discreet galvanised steel 10mm slotted grating. The channels are 1m long, 118mm wide and 173mm deep overall. There is a knock-out for connection to 110mm pipe. The channels interlock for quick and simple on-site fabrication. The channel shape anchors product into concrete surround. Ideal for use with paving up to 60mm thick. CE marked and fully certified to Load Class B 125 BSEN 1433:2002 B125 Load Class Rating – Pedestrian precincts, light vehicles, private car parks.

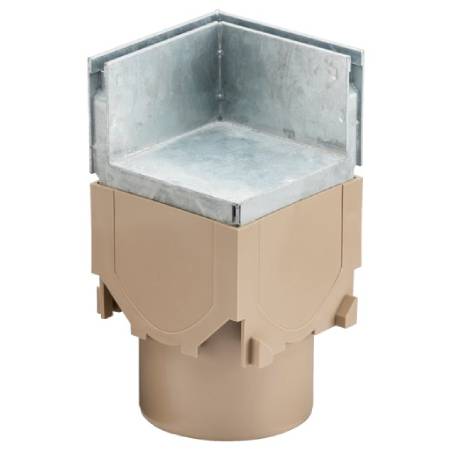

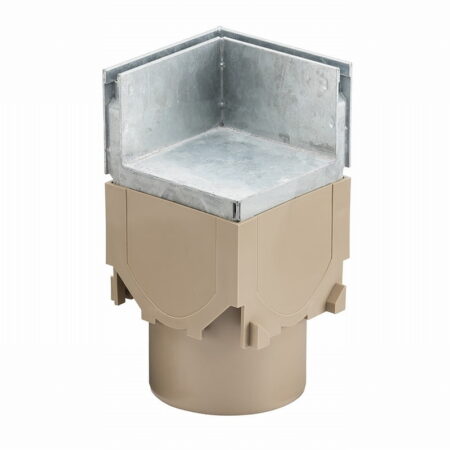

Corner units can be used to create a 90 degree bend in the run of channel. They have 4 way channel connections and a spigot for connecting to 110mm diameter pipes.
Hexdrain End caps can be used with these channels, select end caps from the drop down menu on this page to add to your basket.
