Description

ACO Hexdrains are a high quality, high strength domestic channel suitable for driveways, patios, paths, pedestrian areas. The channels are 1m long, 125mm wide and 80mm deep overall. Internal width is 95mm. They are easy to clip together or cut. A vertical outlet will plug into the underside of the channel creating an easy connection to a 110mm pipe.

A 15 Load Class Rating – Pedestrian, cycleways, minimally trafficked areas (light domestic vehicles only).

Channels are manufactured from recycled polypropylene and available with either a black plastic or a galvanised steel grating. Corner units are available and have a vertical outlet. End caps and sump units are also available.

Options:

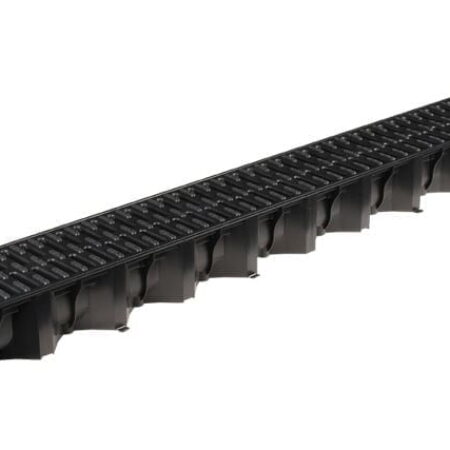

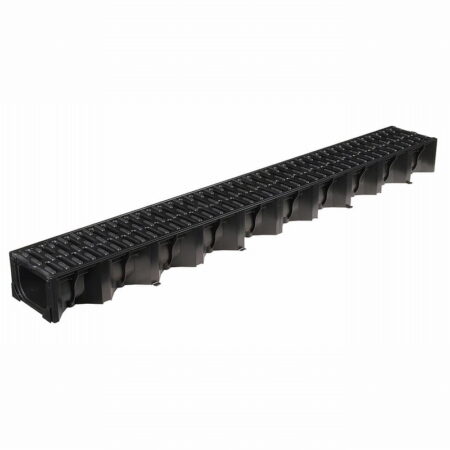

• 1m Channel with Black Plastic Grating

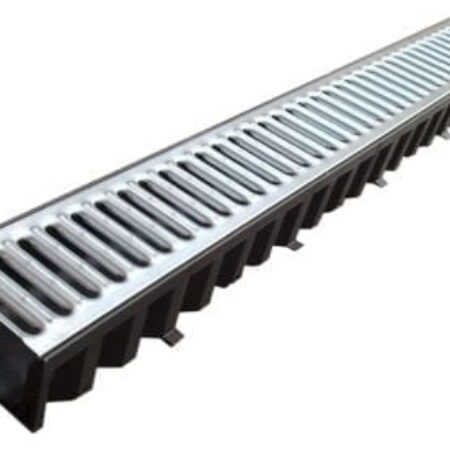

• 1m Channel with Galvanised Grating


• Corner Unit with Black Plastic Grating

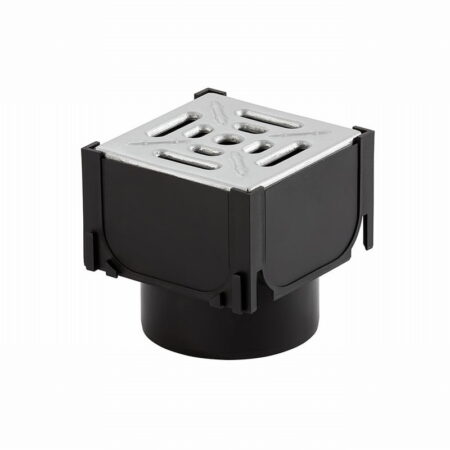

• Corner Unit with Black Galvanised Grating


• End Cap


• Accessory Bag (Contains; 2 x End Caps, 1 x Leafguard, 1 x Vertical Outlet)


• Sump Unit

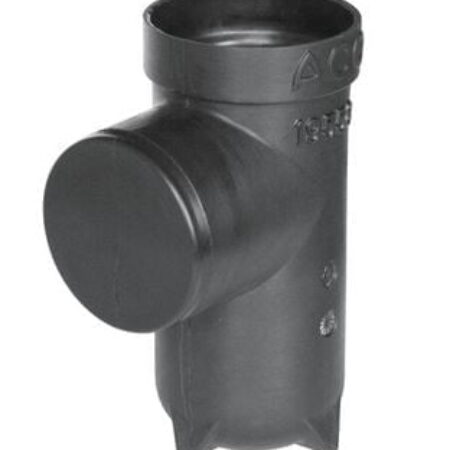

The ACO Sump Unit acts as a filter to prevent any dirt or debris that collects in the drainage system from entering the storm drains. The sump unit sits at the end of the drainage system and will require emptying every now and again to ensure that the drains function correctly.
