Description

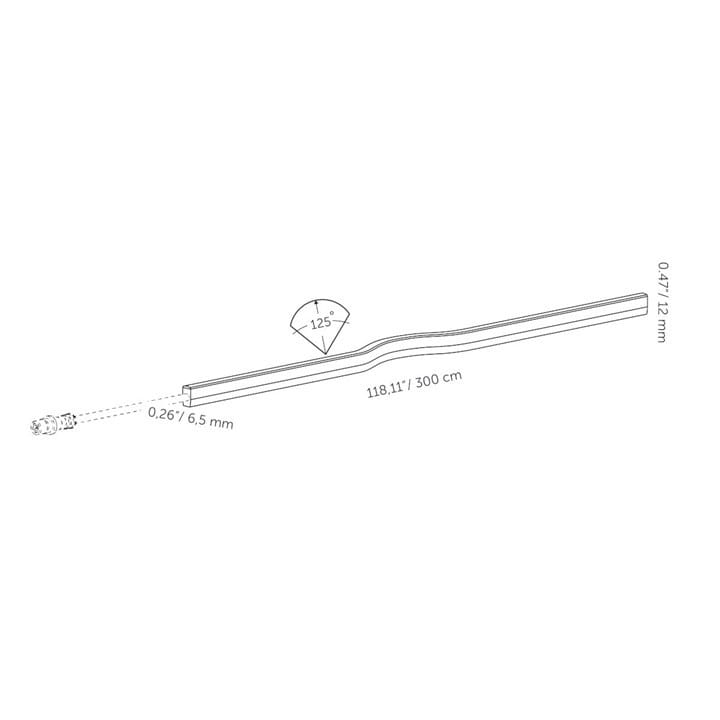

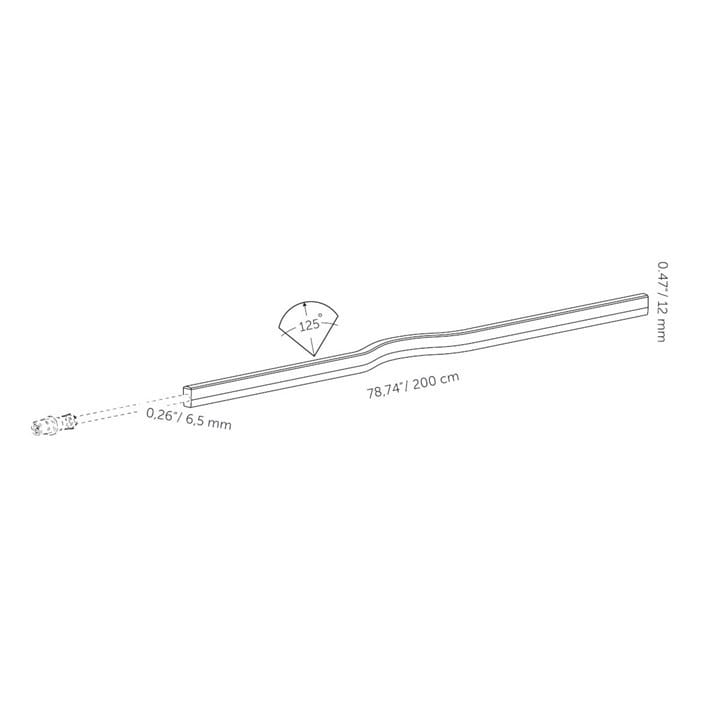

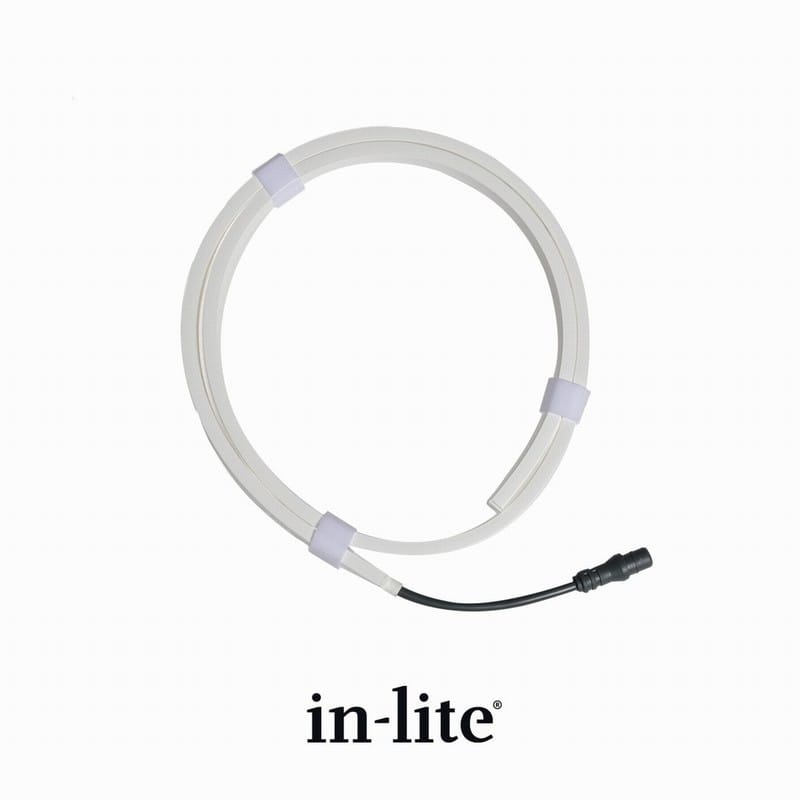

The in-lite® EVO FLEX strip light is specially designed to provide a completely frosted and glowing lighting effect without individual LEDs or “hot spots” being seen along the strip. This EVO FLEX strip light is available in lengths of 1m, 2m and 3m. Need a different length than the available sizes? No problem! Simply trim the EVO FLEX to the desired length using the cut-points located every 25mm along the strip. The flexibility of this product means that it’s completely up to you how you use the EVO FLEX. After cutting, the MINI WATERLOCK that is supplied with each length can be used to re-seal the strip light to maintain the IP68 rating.

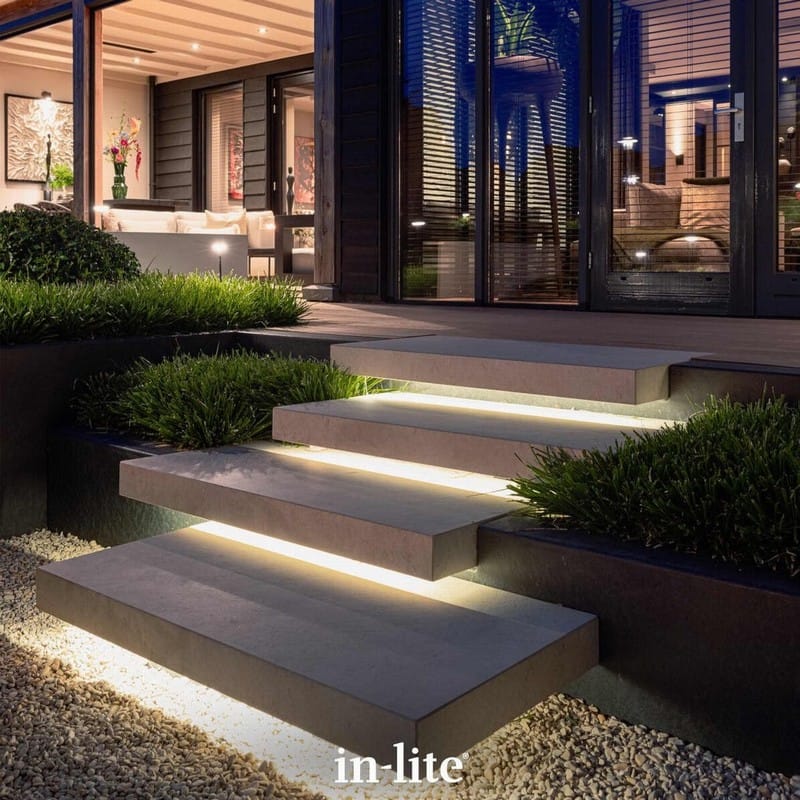

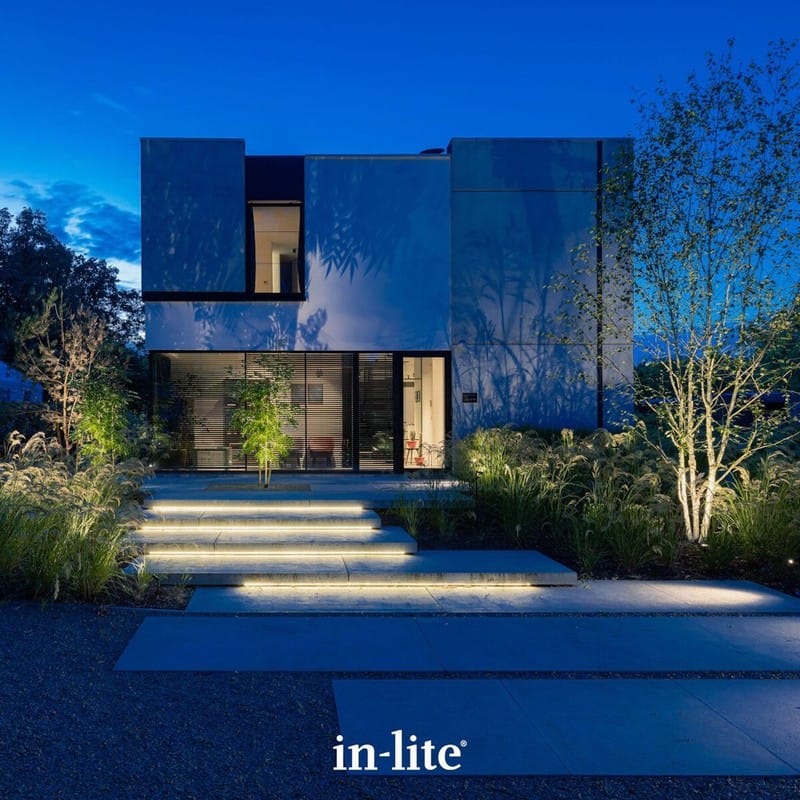

The magic of the EVO FLEX lies in its flexibility, making it possible to conform into virtually any possible shape. Whether your garden has straight lines or lots of organic shapes, the EVO FLEX fits in perfectly! Out of sight during the daytime, these fixtures create an exceptionally unique ambience after dark that is as artistic as it is functional.

There are a host of accessories available for a wide variety of installations: the SPIKE for ground mounting in soft ground, CLIPS for curved installation, two types of PROFILE for linear installation, CORNER INSIDE and CORNER OUTSIDE for bending the strip neatly round corners and finally FLEX-EXT CORD for extending the cable by 1m.

Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light strip is supplied with one of their EASY-LOCK connectors for easily connecting to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The EVO FLEX DRIVER 1 (sold separately) can then be connected in-line between the EASY-LOCK and the LED strip. Always allow space for this driver to be installed; dimensions of the driver can be found below.

Dimensions of EVO FLEX DRIVER 1: length 106mm; width 50mm; height 24mm; input cable length 650mm; output cable length 75mm (approx.)

Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.

Installation values:
1m: 9.90 VA
2m: 15.70 VA

5m: 20.20 VA

Note: Due to the higher VA requirements of the EVO FLEX strip lights, in-lite® recommend placing the strip light no farther than 40m from the transformer whilst using the larger 10/2 gauge cable to ensure optimal operation.

Specification sheet Evo Flex 1

Specification sheet Evo Flex 2

Specification sheet Evo Flex 3

Installation guide
