Description

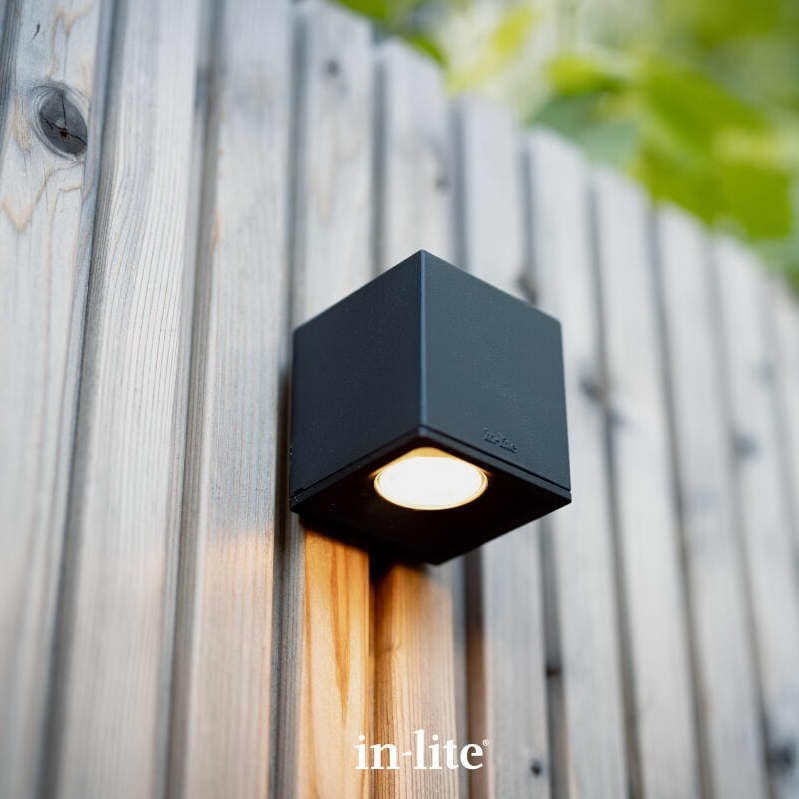

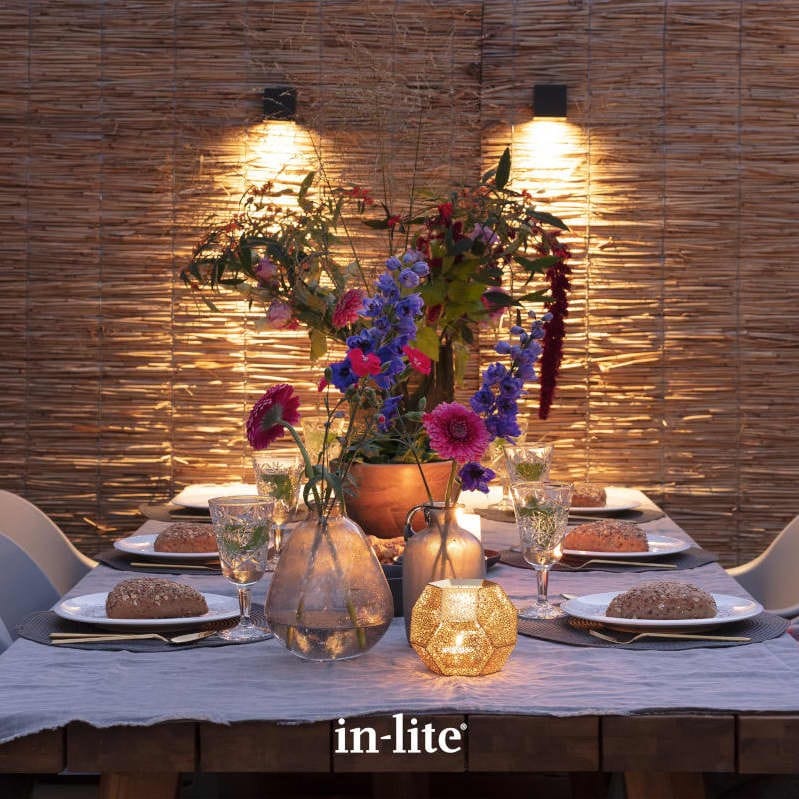

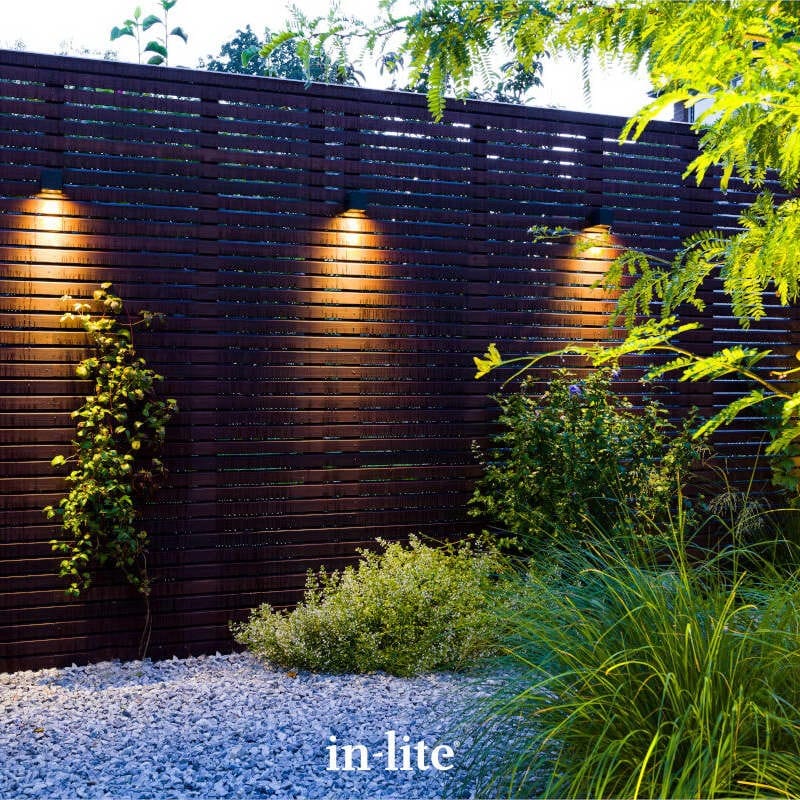

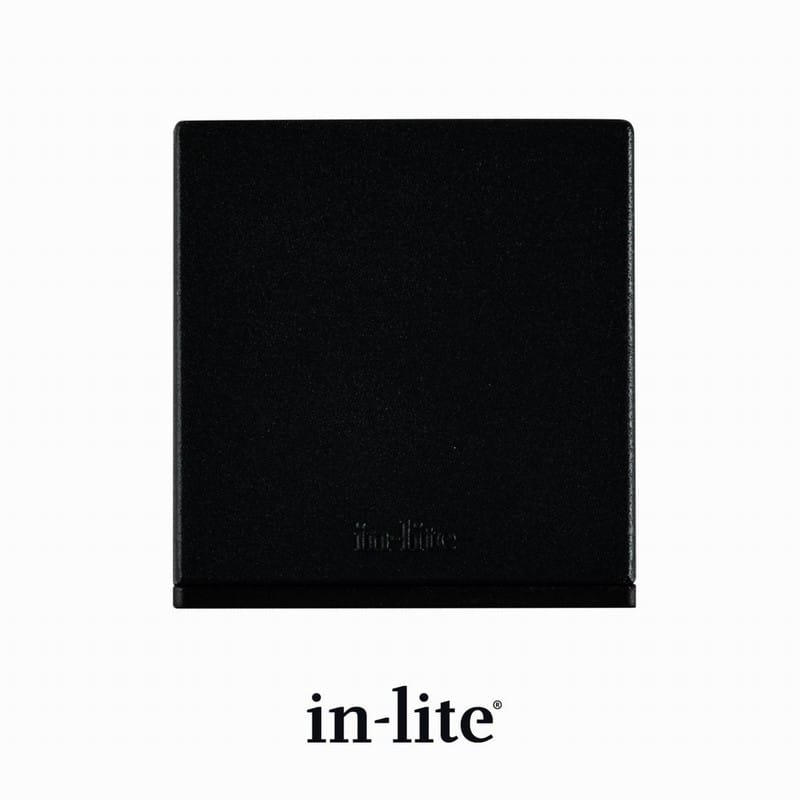

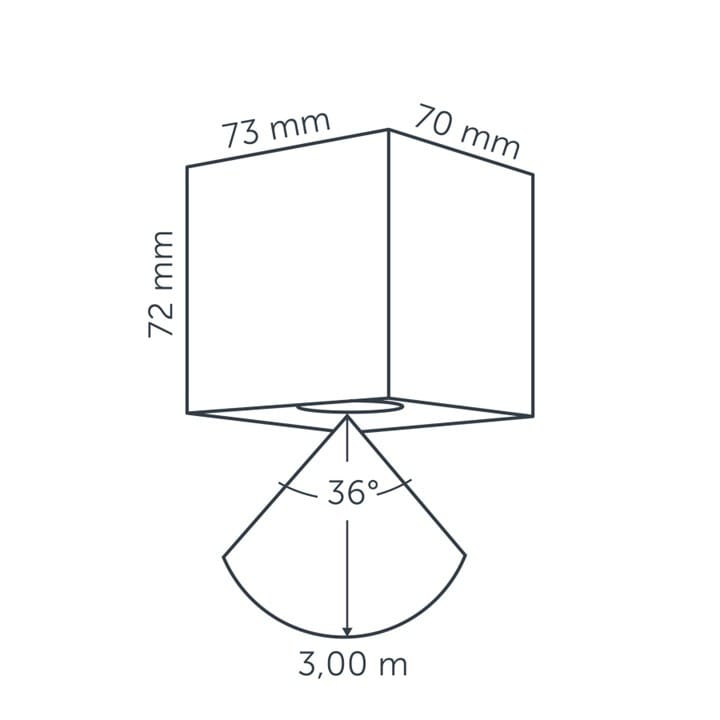

The in-lite® BIG CUBID lights feature a contemporary design with a square shape. With a light distribution of 3 meters, the BIG CUBID is perfect for attractively illuminating walls, fences and pergolas. in-lite® recommend spacing the BIG CUBID every 2 to 2½ metres at a height of 1.6 to 1.8 metres. Available with a Dark Grey finish as standard, with Rose Silver or White upon request.

Installation is easy using the provided screws. For mounting Instructions for installation can be found on the PDF Installation Guide on this page. They are also compatible with the in-lite® FIT mounting plate accessories which are designed to allow level installation on slanted fences. These accessories are designed for a range of fittings and so require a small amount of assembly before use.

These low voltage wall lights are compatible with the in-lite® TOUCH DIMMER wall switch which has a choice of 5 brightness levels that can be cycled through, ranging from full brightness to completely turned off.

If a more subtle light for illuminating low walls or fences is required, the in-lite® CUBID should be used instead.

Each 12v in-lite® fitting features an LED with a 25,000 hour lifetime, giving you the peace of mind that they are built to last for years to come. They are covered under warranty for 5 years when used with the in-lite® system. Each light is supplied with one of their EASY-LOCK connectors for easily connecting. to anywhere on the chosen in-lite® CBL 12v cable. The fitting is then easily connected to the EASY-LOCK using the push-fit connection. The cable length between the EASY-LOCK and the light fitting can be easily extended by up to 3m using the CBL-EXT cable extensions.

Installation value: 2.00 VA

Note: When calculating the total transformer load within an in-lite® system it is crucial to add up the total VA rating rather than the wattage due to power losses. This VA load should not exceed the total stated on the chosen transformer.

Specification sheet

Installation guide
