Description

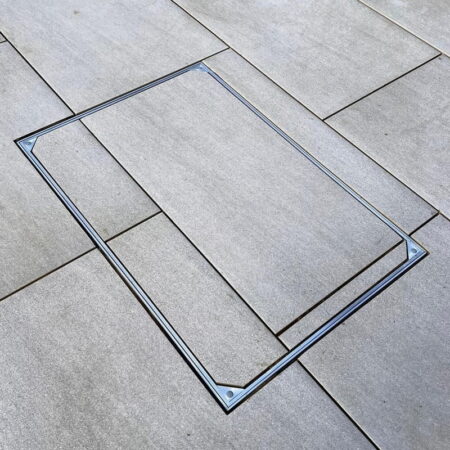

If you are looking for an aesthetically pleasing manhole cover solution and a professional finish for your patio or hard landscaped area, these superbly engineered aluminium recessed manhole covers are the way to go.

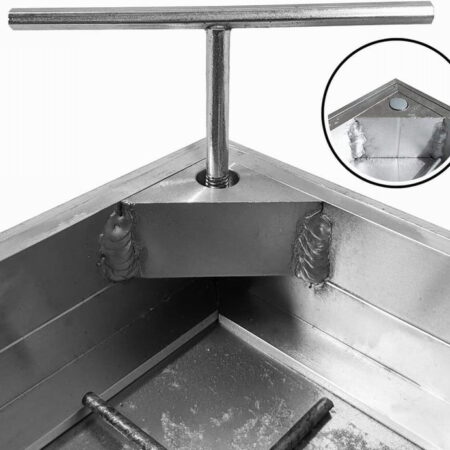

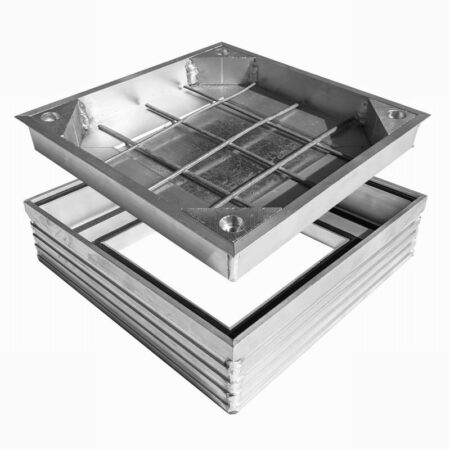

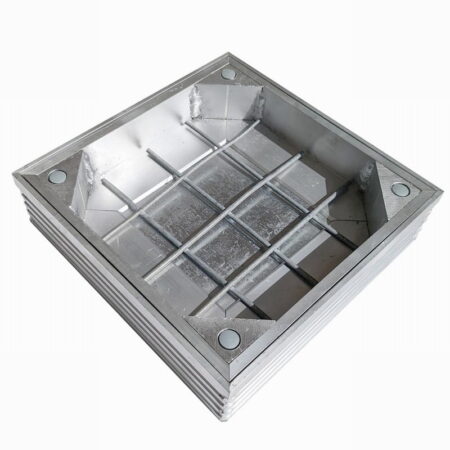

Double sealed so they are odour and waterproof, the weight of the infill effortlessly beds the frame to the tray engaging the seals. Manufactured to BS:EN124 standard the aluminium profile provides a sophisticated look. Supplied with lifting keys and reinforcement mesh, the lifting holes are covered with neat plastic caps. One seal is at the base and there is a “T-rubber” seal built in to the side of the outer frame. The unique seal allows for an additional odour barrier, elasticity to avoid tension between the recessed cover and frame, and the prevention of dirt between the cover and the frame for easy removal.

Sizes – We stock a range of sizes, typical for garden patio solutions with a 5 tonne maximum class load rating. The stocked sizes all have a 60mm frame depth, with an in tray depth of 48mm. If you require a different size cover, a deeper tray or a higher class load rating please contact us as there are many other sizes that can be supplied to order.

Please note the size selected refers to the clear opening dimensions. The 300x300mm clear opening has an overall size of 360x360mm, for 450x450mm it’s 510x510mm, for 600x450mm it’s 660x510mm and for 600x600mm it’s 660x660mm.
