Description

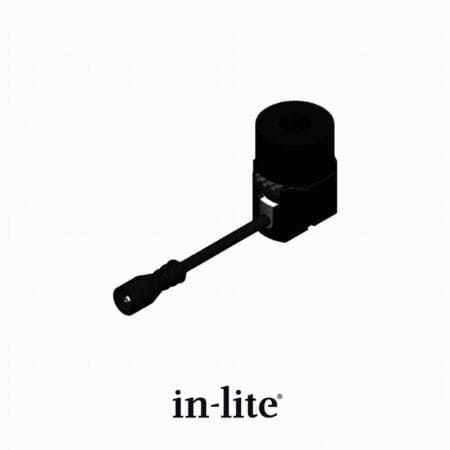

IN-LITE® EASY-LOCK cable connector are supplied with every In-Lite 12v light fixture by default but can be purchased separately if replacement is required.

The in-lite® EASY-LOCK cable connectors are designed for connecting the in-lite® light fittings to the main 12v power cable. They work with both the smaller 14/2 gauge cable and the larger 10/2 gauge cable.

The in-lite® EASY-LOCK connector can be placed on or under the ground without any problems. The special gel protects the connection against moisture and other external influences.

They couldn’t be easier to install. Simply place the cable securely in the grey clamp at the desired place along the 12v cable, then place this into the connector block, cable first. The threaded plastic cap can then be twisted to press the cable and grey clamp against the connection points on the connector block. When installing, make sure the cable is not twisted inside the connector block and ensure the threaded cap is fully tightened to ensure a sound connection.
